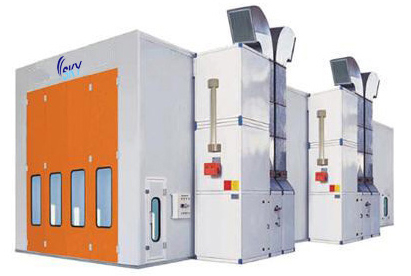

Spray Booth / Malekabine til lastbiler EVEP50

Spray Booth / Malekabine til lastbiler EVEP50

Beskrivelse

ES Maskiner Mobil nr 24674032 eller Mail. salg@esmaskiner.dk

Leasing tilbud.

Udbetaling 220.000 kr
Løber over 60 måneder.
Leasing i måneden 13.991 kr.
Alle priser er excl. moms

Dimensions:



Length Width Height
(mm) (inch) (mm) (inch) (mm) (inch)
Booth Exterior 15150 49’8″ 6500 21’4″ 5400 17’9″
Booth Interior 15000 49’3″ 5000 16’5″ 4800 15’9″
Entrance Size     4000 13’1″ 4800 15’9″
Personnel Door     800 2’7″ 2000 6’7″



Features:  Total Power 30 kw (220v /380v) Noise < 80 db
Frame System – Rockwool 50mm –  for working temperature higher than 80
  – EPS foam plate 75mm – for working temperature less than 80
Basement System – 2 rows of grid plates & 3 rows of diamond plates
Heating System – 2 sets of diesel burner 200000 kcal each, Oil consumption 14 ~ 16 kg/h totally
  – Heating exchanger – stainless steel
  – Working temperature 60 ~ 80 ℃
  – 30-40 minutes to get to working temperature
Air System – 4 sets of 4 kw intake fans, air flow 56000 m3/h total
  – 2 set of exhaust fan, 4 kw each, air flow 28000 m3/h total
  – 0.3 m/s air speed
Filter System – Dual filtering –  primary filter + ceiling filter
Illumination – 16×4 tubes (48″ long, 36w lamps) on the ceiling
  – 12×4 tubes (48″ long, 36w lamps) on the wall
E-controlling System – Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
** Included – All hardware, fasteners, and sealants, A couple of ramps
