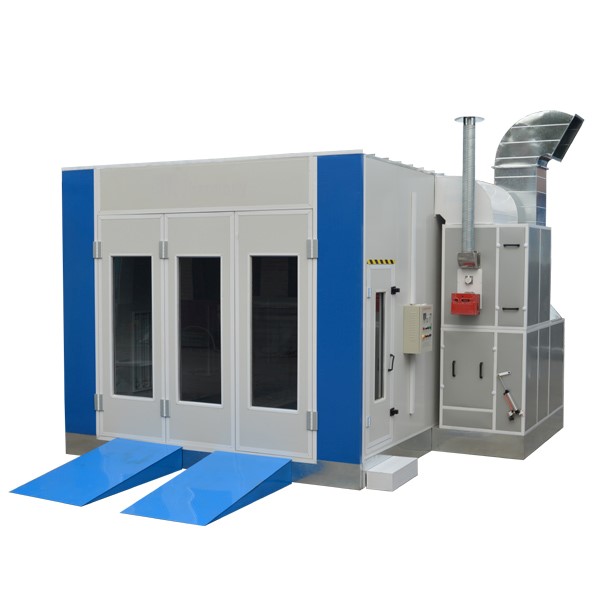

Spray Booth / Malekabine til biler EVEP10

Spray Booth / Malekabine til biler EVEP10

Beskrivelse

ES Maskiner Mobil nr 24674032 eller Mail. salg@esmaskiner.dk

Leasing tilbud.

Udbetaling på 50.000 kr.
Løber over 60 måneder.
Leasing i måneder 3363 kr
Alle priser er excl. moms



Dimensions:



Length Width Height
(mm) (inch) (mm) (inch) (mm) (inch)
Booth Exterior 7050 23’2″ 5250 17’3″ 3600 11’10”
Booth Interior 6900 22’8″ 3900 12’10” 2750 10′
Entrance Size     3000 9’10” 2700 8’10”
Personnel Door     800 2’7″ 2000 6’7″



Features:  Total Power 10.5 kw (220v /380v) Noise < 80 db
Frame System – Rockwool 50mm –  for working temperature higher than 80
  – EPS foam plate 50mm – for working temperature less than 80
Basement System – 2 rows of grid plates & 3 rows of diamond plates
Heating System – Diesel burner 140000 kcal, Oil consumption 4 ~ 5 kg/h
  – Heating exchanger – stainless steel
  – Working temperature 50 ~ 60 ℃
  – 20-30 minutes to get to working temperature
Air System – 2 sets of intake fans, 4 kw each, air flow 28000 m3/h total
  – 0.25 m/s air speed
Filter System – Dual filtering –  primary filter + ceiling filter
Illumination – 8×4 tubes (48″ long, 36w lamps) on the ceiling
  – 6×4 tubes (48″ long, 36w lamps) on the wall
E-controlling System – Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
** Included – All hardware, fasteners, and sealants, A couple of ramps
*** Optional – Infrared Lamp alternative, about 20 kw
  – Water-proof roof optional for outdoor booth installation.
