Fish Powder Line / Produkts line til Fiskemel

Fish Powder Line / Produkts line til Fiskemel

2.167.970,00 DKK

1000-2000KG/H STARFISH POWDER PRODUCTION LINE

This starfish powder production line included drying system, crushing system, milling system, conveyor system and packing system.



Raw materials adopts starfish with 70% moisture content



  1. Products:Starfish Powder with moisture less than 15%, can be 30-120 mesh



  1. Capacity: 1000-2000 kg per hour starfish powder

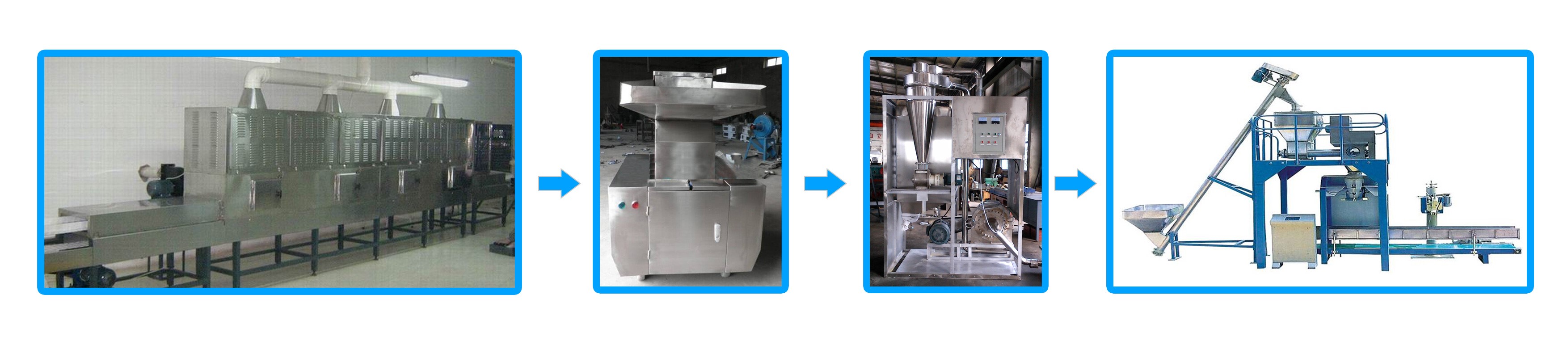

  1. Flow chart:

Starfish Drying System Crushing System Milling System → Packing System



  1. Voltagein China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



  1. Machines materials:All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function









1000-2000KG/H STARFISH POWDER PRODUCTION LINE





Item

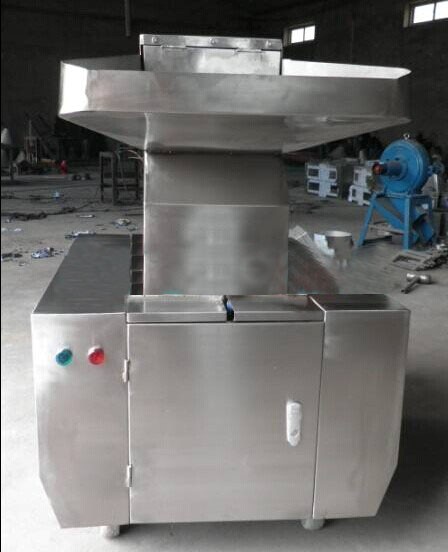

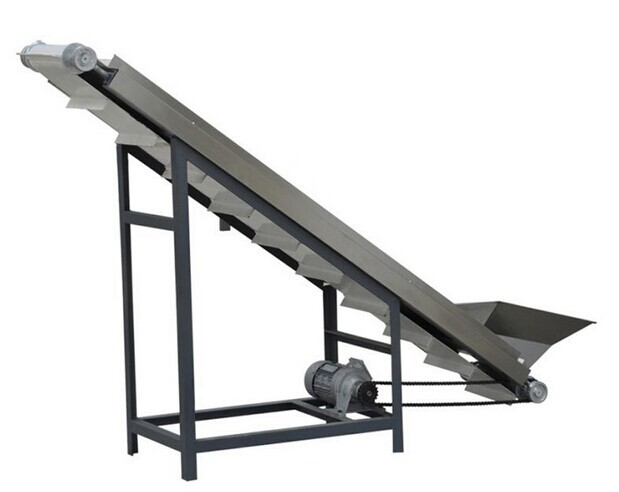

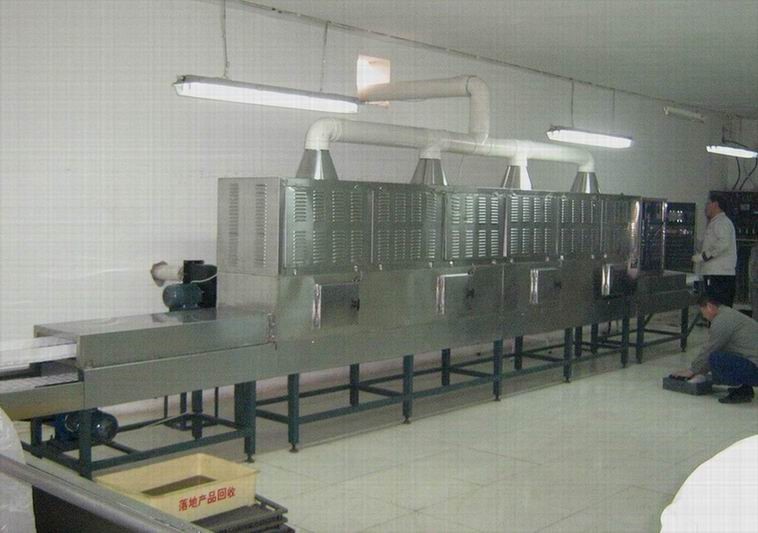

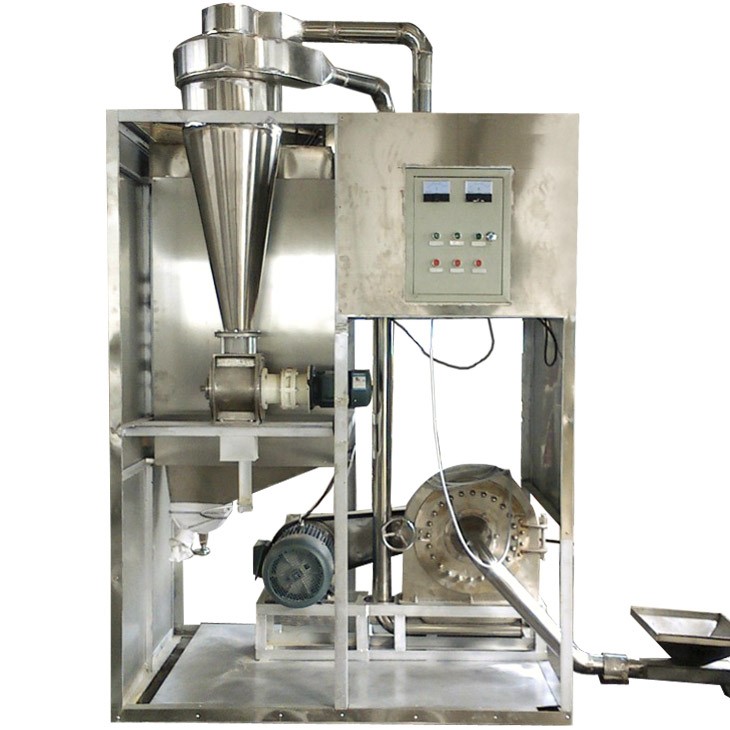

Drying System Belt Conveyor Crushing System Belt Conveyor Milling System

Conveyor

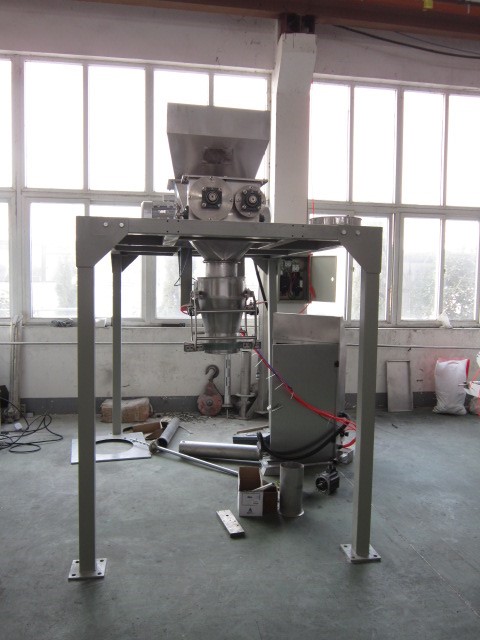

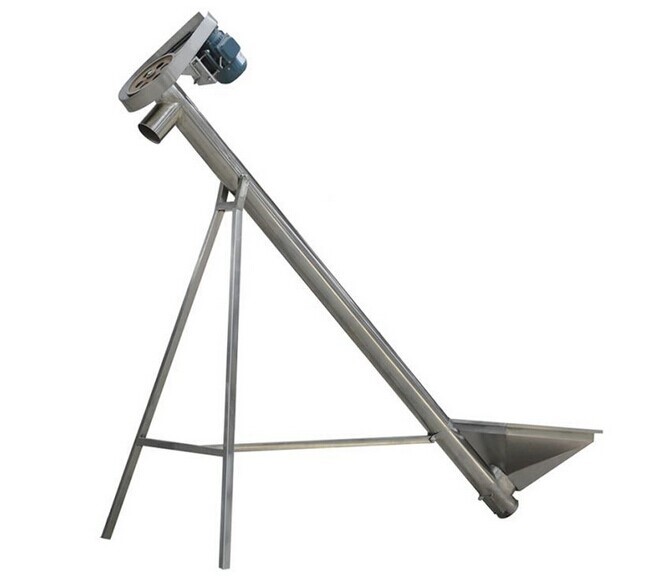

Screw Conveyor Packing System
Powder (KW) 60 1.1 37 1.1 15 7.5 7.5
Electric cost (KW) 40 0.7 22 0.7 18 4 5
Capacity (kg/h) 1500-2000 1500-2000 1500-2000 1500-2000 1500-2000 2000 20kg/bag, 100-150 bags/hr
Dimension(m) 12×1.2×1.8 3×1×2 1.7×1.6×1.9 3×1×2 3×1.5×2.6 2.4×0.0.8×2.5 4.6×1.6×2.7
Pris excl. moms 1.298.438 kr 37.125 kr 202.875 kr 37.125 kr 243.375 kr 40.594 kr 308.438 kr



Note:This fish pellet line total power is 120kw; electric cost is 65 kilowatt per hour. Whole line requires three people to operate.







ES Maskiner Mobil nr 24674032 eller Mail. salg@esmaskiner.dk

Kontakt Eveningstar Maskiner
